User Manual of Auto Tumbler Heat Press
ThayouorprasingtheAutTbeHeatres.Beoresingthis producrhesttie leas read this product manual carefully and keep it for future reference.
| Auto Tumbler Heat Press × 1 | Heat-resistant Gloves× 1 Pair |
| Heat-resistant Tape× 1 Roll | User Manual× 1 |

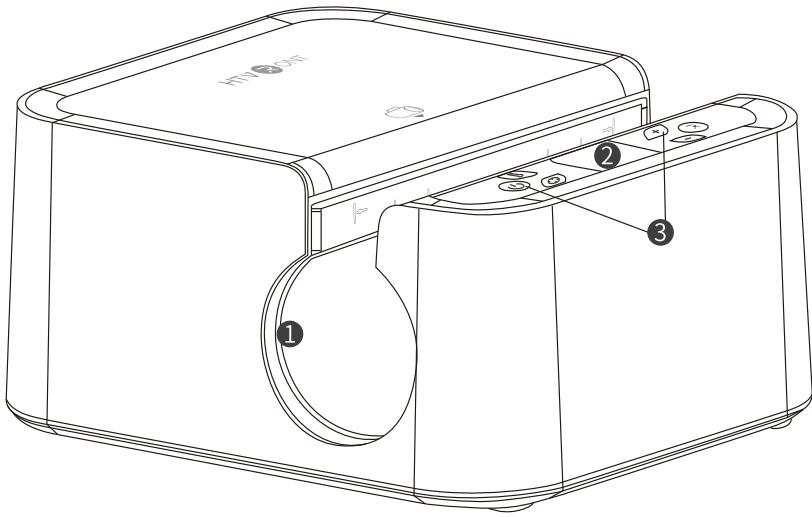

- Heat Plate 2. LED Screen 3. Buttons
Time: 1 ~600 s Temp: 100 ~ 200° (210 ~390F)
¶ Power
e " aeree " u
¶ Usage Notes
leaseensure the tumble is clean without any liquol rdust on the surace; Please remove the lid before putting the tumbler into the machine; Do not put the tumbler into the machine while preheating; Please use tumblers of the appropriate diameters and lengths. (For more details, check the dimensions chart below.)
¶ Temp
Press "Temp" and the temperature value flashes. Adjust the temperature immediately with the "+" or "" button. Long press the "Temp" button for 2 s to convert units.
¶ Time
Press "Time" and the time value flashes. Adjust the time immediately with the or "-" button.

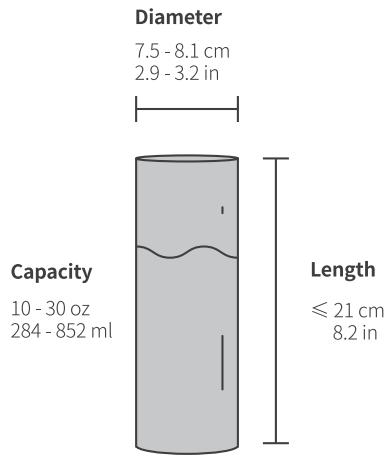

Recommended Tumbler Dimensions
| Capacity |
| 284 - 852 ml/10 - 30 oz |
| Diameter |
| 7.5 - 8.1 cm/2.9 - 3.2 in |
| Length |
| ≤ 21 cm/8.2 in |
¶ Increase
Short press (press once): Temp will increase by time will increase by 5 s.
ong press (press for 3 s) Temp will increase by ; time will increase by 10 s.
¶ Decrease
Short press (press once): Temp will decrease by time will decrease by 5 s.
ong press (press for 3 s) Temp will decrease by time will decrease by 10 s.

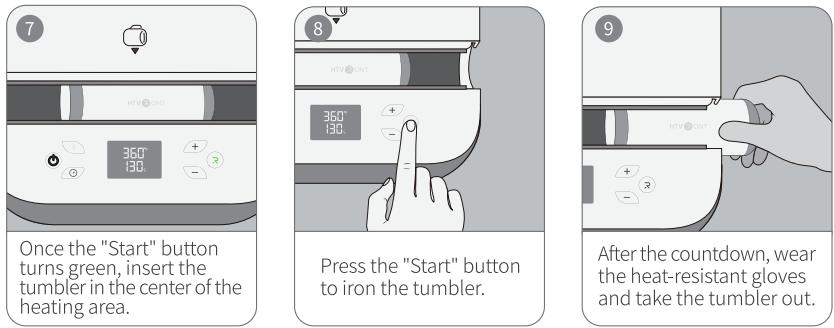

¶ Start
Press the "Start" button to iron automatically with a countdown. "r
J 5 Set the proper temperature and time; ait for the screen to $20 $20 + flash three times to R 0 preheat. The "Start" button is red, and the screen displays the real-time temp during the process. Power on the machine. Press the "Power" button to turn on the machine Default setting: 660 Ss).
¶ Memory mode
The set temperature and time will be remembered for the next operation.
¶ Auto turn-off
¶ Emergency stop
This machine will turn off automatically if there's no operation in 15 minutes. There will be beeps and flashing lights in the last 10 seconds before the shutdown.
Press any button when the heating area is closing, and the heating area will reset and open.
¶ Quick Reference Chart
| Base Materials | Time | Temperature |
| Stainless Steel Tumbler | 130±20 s | 185±5° (365°F±10°F) |
| Ceramic Tumbler | 400±20 s | 190°±5° (374°F±10°F) |
| Glass Tumbler | 300±30 s | 185°±5° (365°F±10°F) |
¶ Precautions
Close supervision is required when this product is used near children.
HOUSEHOLD USE ONLY.
DO NOT IMMERSE IN WATER.
instructions that include the following information:
becoming entangled in or tripping over a longer cord;
when care is exercised in their use;
c) When an extension cord is used:
arl t ea upen hal marked electrical rating of the product;
being tripped over, snagged, or pulled on unintentionally, especially by children. Do not use this product outdoors. It's only for household use;
environment while in use;
Do not touch the heat plate after powering on to prevent burns;
cord while leaving;
"EL to contact us if you have more questions;
Please wear heat-resistant gloves when taking the tumbler out of the machine to avoid burns;
Please unplug the power cord after use or before cleaning the product;
tioned or damaged;
9. Do not immerse the product in any liquid;
10. Children under 14 years old MuST have adult supervision while using the machine.
¶ CLEANING AND MAINTENANCE
cord, and wait for the body to completely cool before performing cleaning and maintenance.
to clean it.
of children.
T deviplis with pr Rule.Opeaton is ujc e tns: Th devicmay ot causeharul interference nd this devic mustaccept any intererence reivd including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Th ient as beetste nun ply ith e mit rlasigaldevirn part 15 of the C Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and cn radiate radifrequency nonstallusnwi us n radio communications. However, there is no guarantee that interference wll not occur in a particular at n e one or more of the following measures.
| Product Name | Auto Tumbler Heat Press | Model | HPT01 |
| Input Voltage | 220 - 240V ~50 - 60 Hz120V~ 60 Hz | Poweron osumption | 540 - 630W; 600W |
| Temperature | 100° (210°F) - 200°C (390°F) | Time | 1-600 s |
| Wire Length | 1.8 m (5.9 ft) | Connection | Y Connection |
| Product Size | 32.8 × 27.8 × 16.0 cm12.9 X 10.6 × 6.3 in | Package Size | 39.0 × 33.5 × 20.5 cm(15.4 × 13.2 × 8.1 in) |
| Product Weight | 4.5 kg (9.9 lb) | Package Weight | 5.1 kg (10.4 lb) |
| CompatibleDiameter | 7.5 ~ 8.1 cm (2.9 ~ 3.2 in) | CompatibleLength(Max) | 21.0 cm (8.2 in) |
¶ Auto Tumbler Heat Press Limited Warranty
The warranty pe his maci e yer fomheat puras.Other aessori l proof of purchase.
l nt weakniut s Mehilcailpl ntcntabil paru.wnawetnw.
¶ Q1: Can I use tumblers in any shape?
A1: Please use a straight tumbler to achieve the best transfer result.
¶ Q2: Why does the machine emit slight smoke during or after ironing?
A1It is normal as the sublimation ink will sublimate into gas at high temperatures.

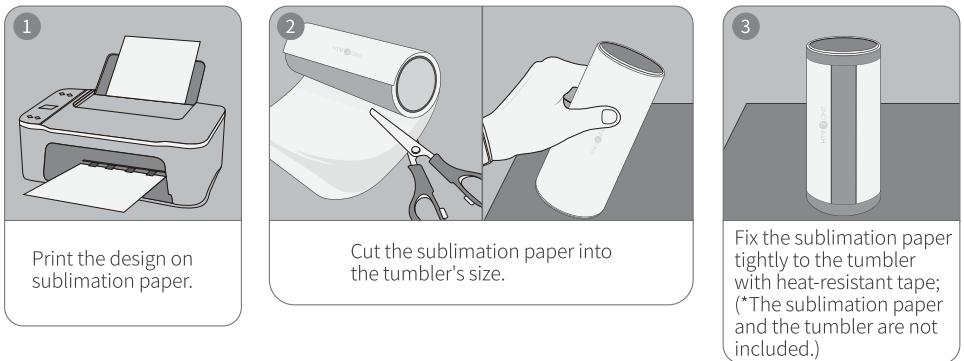

¶ Q3: What to do to ensure a successful transfer result?
sre he blimatin papeeheumblecosely wit heateistante nsure the sublimatin paper as been cut into a proper ze that ftsthetumbler's size peely A:s reende crf e umble cramic, lass stainless)ec ti wit a l align your tumbler to " \textcircled { \scriptsize { 1 } } " for the best result.
¶ Q4: What to do when the image' s color turns uneven or dull after ironing?
A1: Increase the temp or the time;
A Ensure the sublimation paper is fixed to the tumbler closely with heat-resistant tape;
A3: Try different sublimation paper and ink with higher quality (Recommend Brand: HTVRONT).
¶ :What to do when the image appears double shadow or the sublimation paper leaves residue on the tumbler?
A1: Decrease the temp or the time; srhe blimatn papheumboely wit heateistante A3: Try different sublimation paper and ink with higher quality (Recommend Brand: HTVRONT).
¶ Q6: Why does my tumbler turn out with paper texture?
A1: The ironing time may be too long. Decrease the time;
A2: Try different sublimation paper and ink with higher quality (Recommend Brand: HTVRONT).
Q: Why does the sublimation paper show a slight yellowing after ironing: A1:It is normal as the paper will become yellow at high temperatures.
